Toroidal Transfomers - Open Frame/Enclosed Units

Open Frame/Enclosed Units

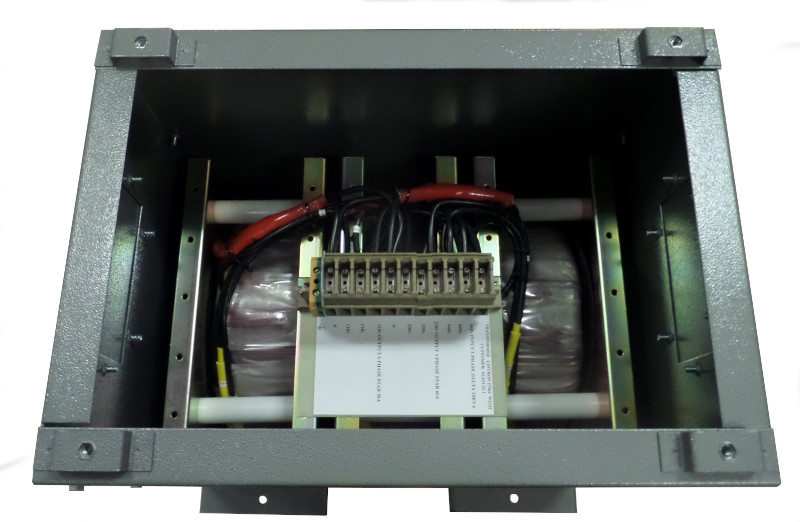

These toroidal transformers has been manufactured as an open frame or enclosed unit for quick and easy installation with pre-installed connectors. Connectors and mounting posistions can be customized by the customer for a specific need or installation.

Single Phase Units

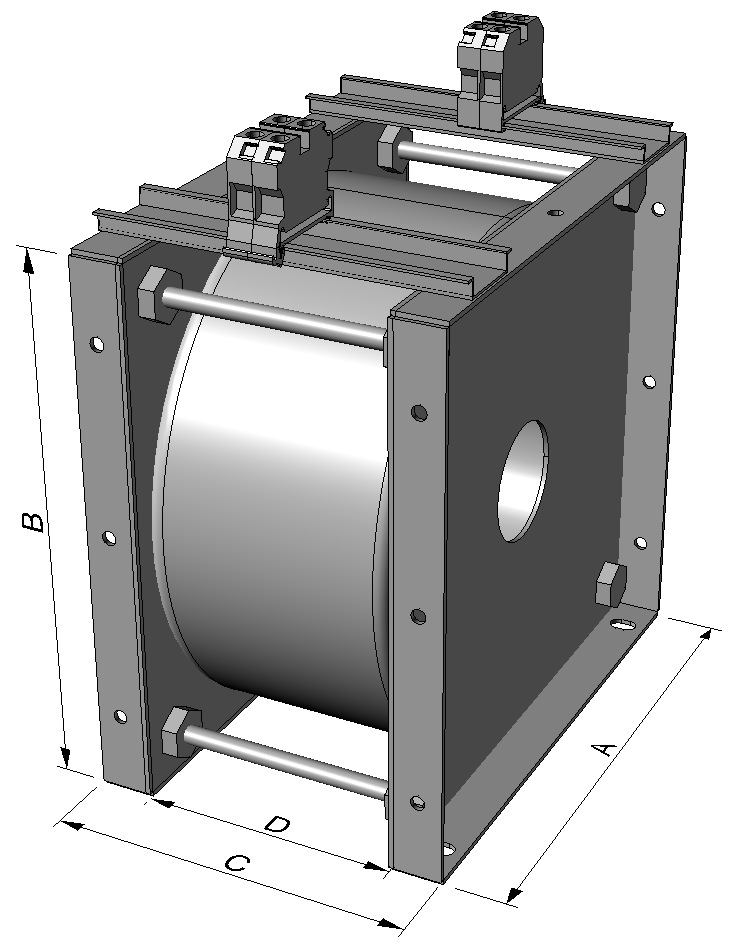

Single Phase Data Chart

Please note that these dimensions are an indication on size and weight depending on specific requirements.

Power Rating (VA)	A (mm)	B (mm)	C (mm)	Weight
500 VA	170	170	110	5 kg
650 VA	170	170	120	6 kg
800 VA	235	235	110	9 kg
1000 VA	235	235	125	10 kg
2000 VA	300	300	130	16 kg
3000 VA	300	300	150	18 kg
4000 VA	300	300	160	19 kg
5000 VA	350	350	150	25 kg
6000 VA	350	350	160	31 kg
7000 VA	350	350	170	32 kg
8000 VA	350	350	190	35 kg
10 000 VA	400	400	150	40 kg

Three Phase Units

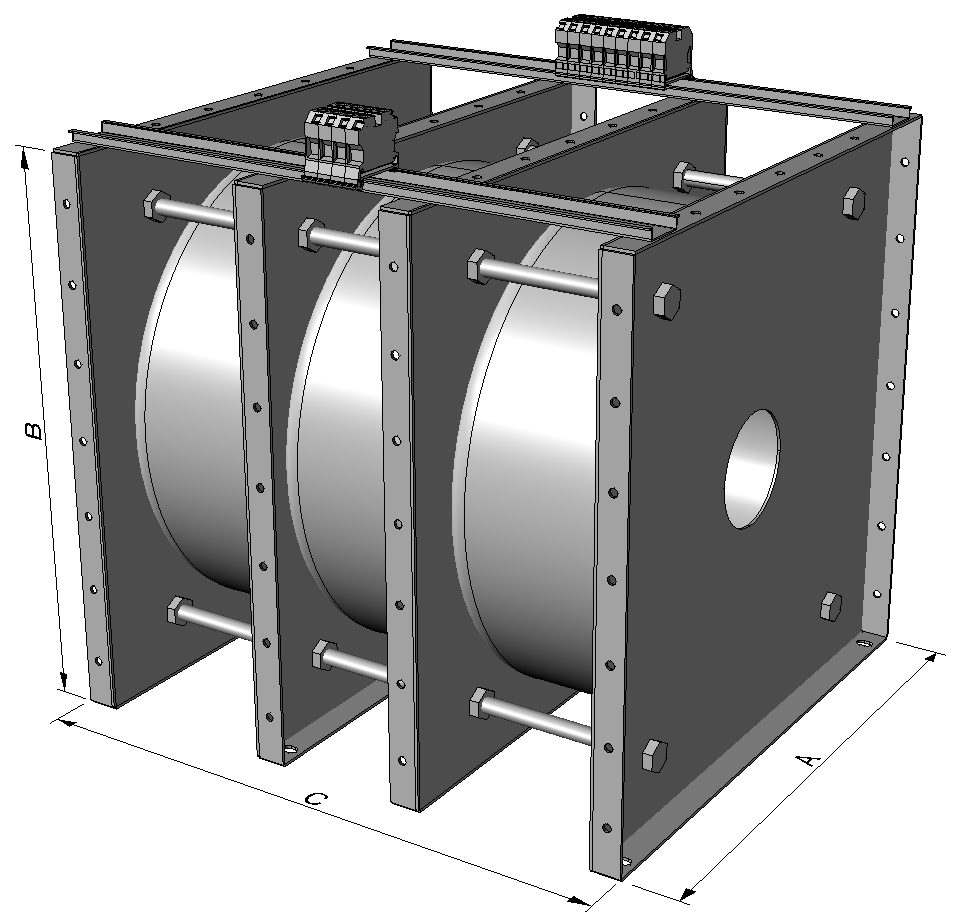

Three Phase Data Chart

Please note that these dimensions are an indication on size and weight depending on specific requirements.

Power Rating (VA)	A (mm)	B (mm)	C (mm)	Weight
1000 - 1500 VA	170	170	230	20 kg
1500 - 2500 VA	170	170	260	25 kg
2000 - 3000 VA	235	235	260	30 kg
2500 - 3500 VA	235	235	270	32 kg
3500 - 4500 VA	300	300	320	45 kg
7000 - 9000 VA	300	300	380	55 kg
10 000 - 12 000 VA	300	300	410	60 kg
13 000 - 15 000 VA	350	350	350	70 kg
16 000 - 18 000 VA	350	350	380	75 kg
19 000 - 21 000 VA	350	350	410	80 kg
23 000 - 25 000 VA	350	350	410	95 kg
26 000 - 40 000 VA	400	400	350	105 kg
